• DC600M Enterprise Class Mixed-Use SSD with Power Loss Protection

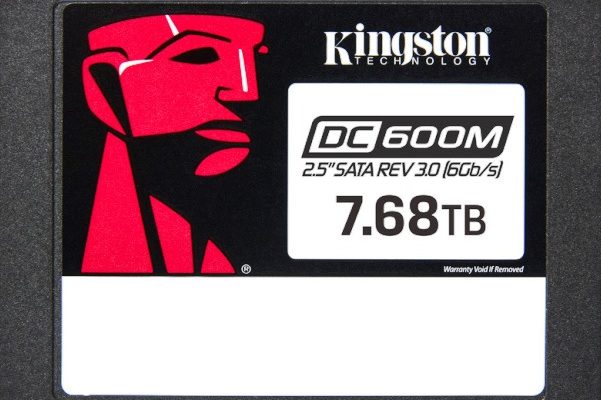

 Kingston Digital Europe Co LLP, a flash memory affiliate of Kingston Technology Company, Inc., a world leader in memory products and technology solutions, today announced its new DC600M Enterprise SSD. DC600M is optimised for mixed-use workloads with excellent Quality of Service (QoS) to ensure latency and IOPS consistency to hit Service-level agreements.

DC600M is 6Gbps SATA 3.0 storage with 3D TLC NAND, suited for use in high-volume rack-mount servers. The drive includes hardware based on-board power loss protection via power loss capacitors to protect data against unexpected power failure reducing the risk of data loss, and ensures the drive successfully re-initialises on the next system power-up. With predictable low latencies over a wide range of read and write workloads DC600M is designed for system integrators, hyperscale data centers, and cloud service providers.

“Quality of Service in an enterprise SSD is critical as data centers and workloads demand stability and low latency for predictable storage performance levels to meet strict customer SLAs,” Tony Hollingsbee, SSD business manager, Kingston EMEA. “In addition, DC600M is an AES 256-bit Self Encrypting Drive making it the optimal data center storage solution when you combine its enterprise-class reliability and strict QoS requirements along with Kingston’s legendary sales support.”

The DC600M data center SSD is available in 480GB, 960GB, 1920GB, 3840GB, and 7680GB capacities.


DC600M Data Center SSD Features & Specifications:

  • Hardware-based PLP: Power loss capacitors to protect user data against unexpected power loss and enhance performance.
  • Delivers excellent Quality of Service (QoS): Optimised performance predictability to hit Service-level agreements (SLAs).
  • AES 256-bit Self Encrypting Drive: Built in protection to safeguard important data.
  • Capacities up to 7680GB: Upgrade and manage storage with capacities up to 7680GB.
  • Form factor: 5 Inch
  • Interface: SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)
  • Capacities: 480GB, 960GB, 1920GB, 3840GB, 7680GB
  • NAND: 3D TLC
  • Self-Encrypting Drive (SED): AES 256-bit Encryption
  • Sequential Read/Write:
  • 480GB – 560MBs/470MBs
  • 960GB – 560MBs/530MBs
  • 1920GB – 560MBs/530MBs
  • 3840GB – 560MBs/530MBs
  • 7680GB – 560MBs/530MBs
  • Steady State 4k Random Read/Write:
  • 480GB – 94,000/41,000 IOPS
  • 960GB – 94,000/65,000 IOPS
  • 1920GB – 94,000/78,000 IOPS
  • 3840GB – 94,000/59,000 IOPS
  • 7680GB – 94,000/34,000 IOPS
  • Quality of Service (Latency) (99.999) Read/Write:
  • 480GB – 180/110 uSec
  • 960GB – 3840GB – 200/300 uSec
  • 7680GB – 240/170 uSec
  • Typical Latency – Read/Write: <200 µs / <30 us
  • Hot-Plug Capable
  • Static and Dynamic Wear Leveling
  • Enterprise SMART tools: Reliability tracking, usage statistics, life remaining, wear leveling, temperature
  • Endurance:
  • 480GB – 876TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
  • 960GB – 1752TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
  • 1920GB – 3504TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
  • 3840GB – 7008TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
  • 7680GB – 14016TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
  • Power consumption:
  • Idle: 1.30W
  • Average: 1.45W
  • Max Read: 1.6W
  • Max Write: 3.6W
  • Storage temperature: -40°C ~ 85°C
  • Operating temperature: 0°C ~ 70°C
  • Dimensions: 9mm x 100mm x 7mm
  • Weight:34g
  • Vibration operating: 17G Peak (7–800Hz)
  • Vibration non-operating: 20G Peak (10–2000Hz)
  • MTBF: 2 million hours
  • UBER: ≤10 -17
  • Warranty/support: Limited 5-year warranty with free technical support
